Bharat Industries

High Quality Flanges Manufacturers & Suppliers in India

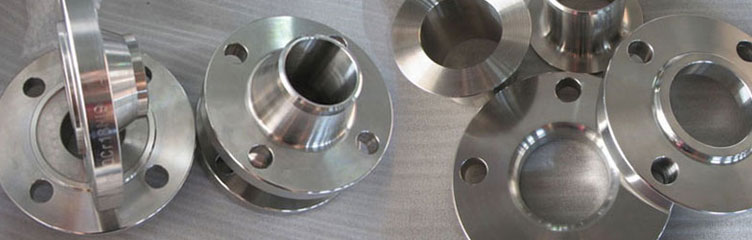

We, Bharat Industries are manufacturer, suppliers and exporters of high quality stainless steel, carbon steel, alloy steel, duplex steel, high nickel alloy flanges in Mumbai, India. A flange is a forged or cast ring of steel designed to connect mechanically sections of pipe or join pipe to a pressure vessel, pump, valve or any other piece of equipment.

Steel flanges provide an easy access for cleaning, inspection or modification. (ASTM, ASME, ANSI, AFNOR, AWWA, GOST, MSS, SA, UNI, EN, DIN, BS, JIS, AS, etc.) They usually come in round shapes but they can also come in square and rectangular forms. The flanges are joined to each other by bolting and joined to the piping system by welding or threading and are designed to the specific pressure ratings; 150lb, 300lb, 400lb, 600lb, 900lb, 1500lb and 2500lb.

SS flange can be a plate for covering or closing the end of a pipe. This is called a blind flange. Thus, flanges are considered to be internal components which are used to support mechanical parts.

Flanges Specification :

Dimensions : ANSI B16.47 Series A & B, ANSI B16.5, ASA, API-605, MSS SP44, AWWA, Custom Drawings
Type : Raised Face (RF), Flate Face (FF), Ring Type Joint (RTJ)
Size : 1/2" (15 NB) to 48" (1200NB)
Form : Orifice Flanges, Spacer Ring Flanges, Slip on Flanges, Lap Joint Flanges, Socket weld Flanges, Threaded Flanges, BLRF Flange, Spectacle Blind Flanges, Ring Type Joint Flanges, WNRF Flange, Weld neck Flanges, Nipolet Flanges, SORF Flange, Long weld Neck Flanges, RTJ Flanges, Nipo Flange, Plate Flanges, Flat Flange, Forged Flanges, Blind Flanges
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6, 10, 16, 25, 40 Etc.
DIN : DIN 2527, DIN 2566, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2573, DIN 2576, DIN 2641, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2635, DIN 2636, DIN 2633, DIN 2634, DIN 2637, DIN 2638, DIN 2673
BS : BS4504, BS4504, BS1560, BS10

Materials & Grades :

Stainless Steel Flanges :
ASTM/ASME A182 304, 304L, 310, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 410, 416, 420, 430, 431, 904L

Carbon Steel Flanges :
ASTM A105, A350, A181, A516 / ASME SA105 LF 2 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70

Alloy Steel Flanges :
ASTM A182, ASME SA182 A387 F1, F5, F9, F11, F12, F22, F91

Nickel Alloy Flanges :
ASTM SB 564, SB 160, SB 472, SB 162 Nickel 200, Nickel 201, Monel 400, Monel K500, Hastelloy C22, Hastelloy C276, Hastelloy C2000, Hastelloy B, Nimonic 75, Nimonic 90, Nimonic 80A, Inconel 600, inconel 601, Inconel 617, Inconel 625, Inconel 718, Inconel 725, Inconel X-750, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Incoloy 926, Incoloy 890, Incoloy 925, Incoloy A286

Titanium Flanges :
ASTM B 381, ASME SB 381 - Grade 2, Grade 5, Grade 7

Duplex & Super Duplex Steel Flanges :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Copper Nickel Flanges :
Copper Nickel CuNi 90/10 & 70/30, CuNi10Fe1.6Mn, CW352H, C70600, C71500, 7060X
